Tender Brakes 1

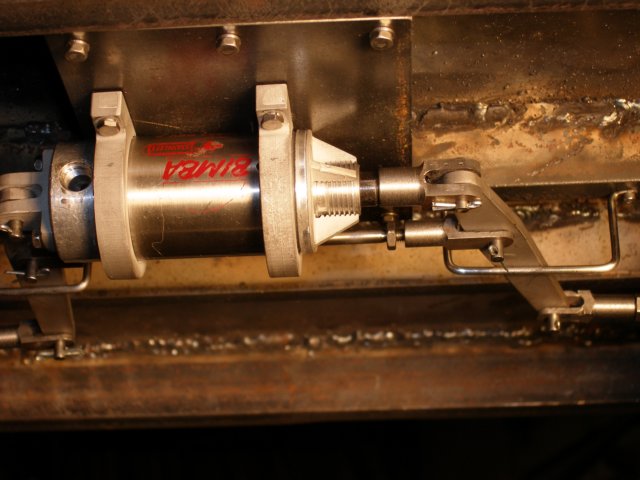

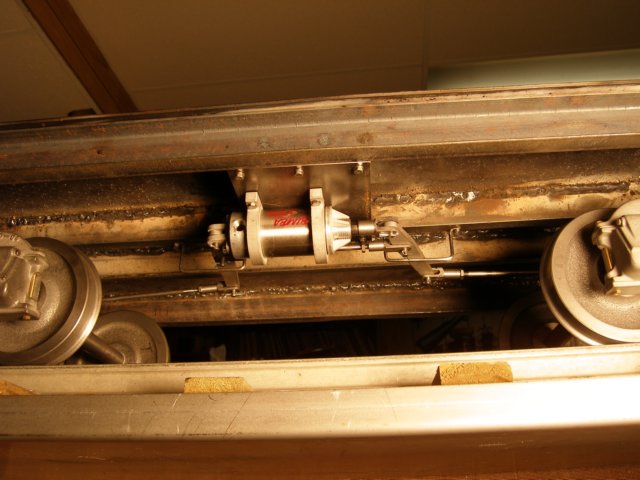

Under the tender frame shot of the tender brakes. I followed the prototype drawings in the 1922 & 1943 Locomotive Cyclopedia. The air cylinder is a surplus Bimba, you can see the air inlet on the left. The mounting plate is removable in case I have to run plumbing under it.
